PRODUCTS> KOROT P3 AccurateKOROT

Listen To Your Heart

SCROLL DOWN

KOROT Test
Where Korotkoff Sounds Meet Innovation: The embedded KOROT sensor in P3 Accurate detects blood flow sounds to measure blood pressure with the same precision as a doctor's stethoscope.

Feature 01

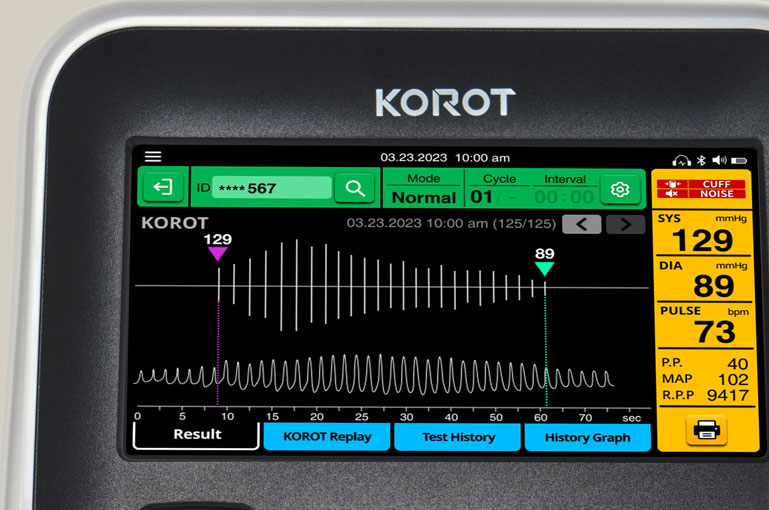

KOROT Test: The KOROT test digitizes the manual method doctors use to measure blood pressure, integrating Korotkoff sound and pulse signals into a single, real-time display on a vibrant touch screen.

1 Shows systolic pressure, diastolic pressure, pulse rate, pulse pressure,
mean arterial pressure and rate of pressure product.

2 Check for irregular heart beat, loose cuff, motion detection, noise detection.

3 Cycle Mode

4 Replay the KOROT test

5 Search patient history by using an ID number

6 Print result sheet

7 Favorite features

1 2 3 4 5 6 7

Feature 02

KOROT Graph: Simultaneously monitors KOROT and Oscillometric signals, displaying irregular heartbeat (IHB) through intuitive icons during blood pressure measurement, supporting early detection of cardiovascular risks and ensuring patients receive timely and appropriate secondary care.

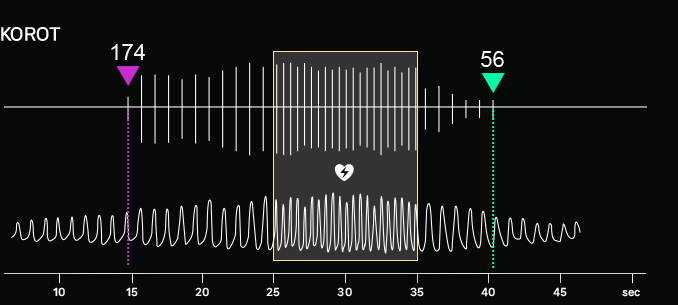

KOROT(코르트) Irregular Heart beat Example 1

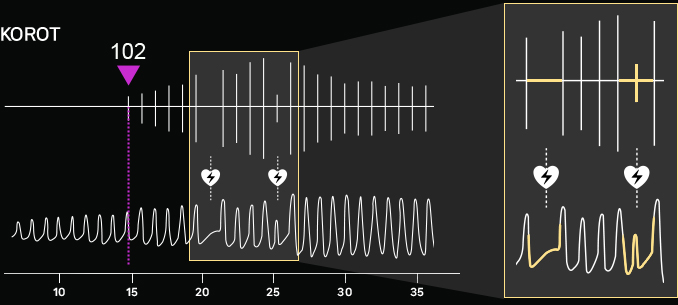

KOROT(코르트) Irregular Heart beat Example 2

Feature 03

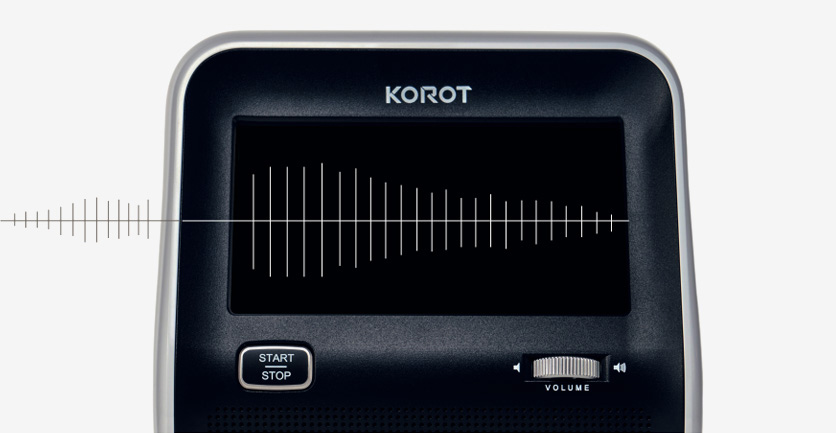

Immersive Sounds: KOROT sensor collects more than 4,000 sound signals per second, processing them rapidly through a dedicated chip. This advanced signal processing facilitates audio output that closely mimics actual Korotkoff sounds, ensuring precise and reliable blood pressure measurement.; By delivering immersive audio feedback beyond human hearing capabilities, this innovation builds trust and empowers medical professionals to make confident assessments with exceptional accuracy.

The KOROT sensor collects
the Korotkoff sound
Dedicated processor for
signal processing
Speaker to play
the Korotkoff sound

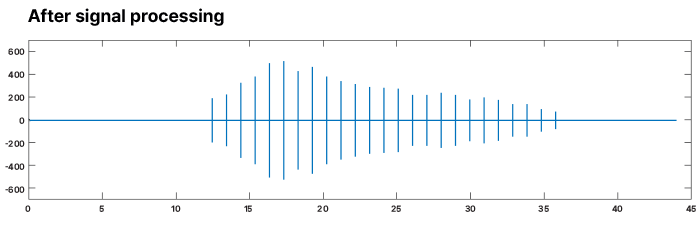

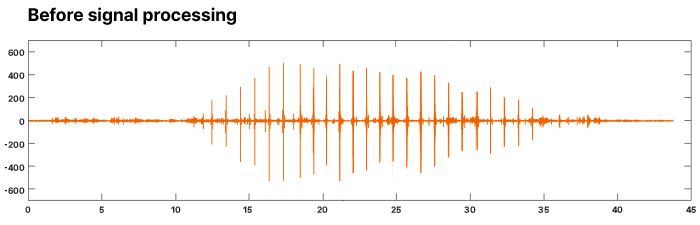

What Ears Can’t Hear KOROT Detects: The KOROT sensor captures low-frequency Korotkoff sounds and reproduces them through a speaker with stethoscope-level clarity.; Powered by high-performance DSPs, its real-time multi-signal processing algorithms apply advanced noise filtering to isolate critical signals, ensuring exceptional accuracy and reliability.

Feature 04

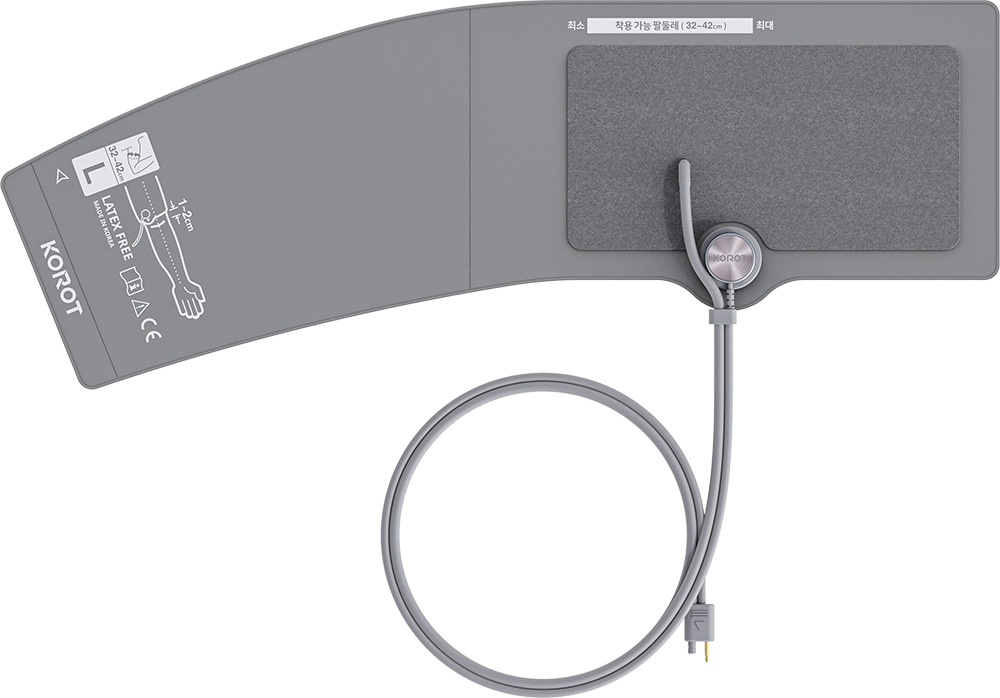

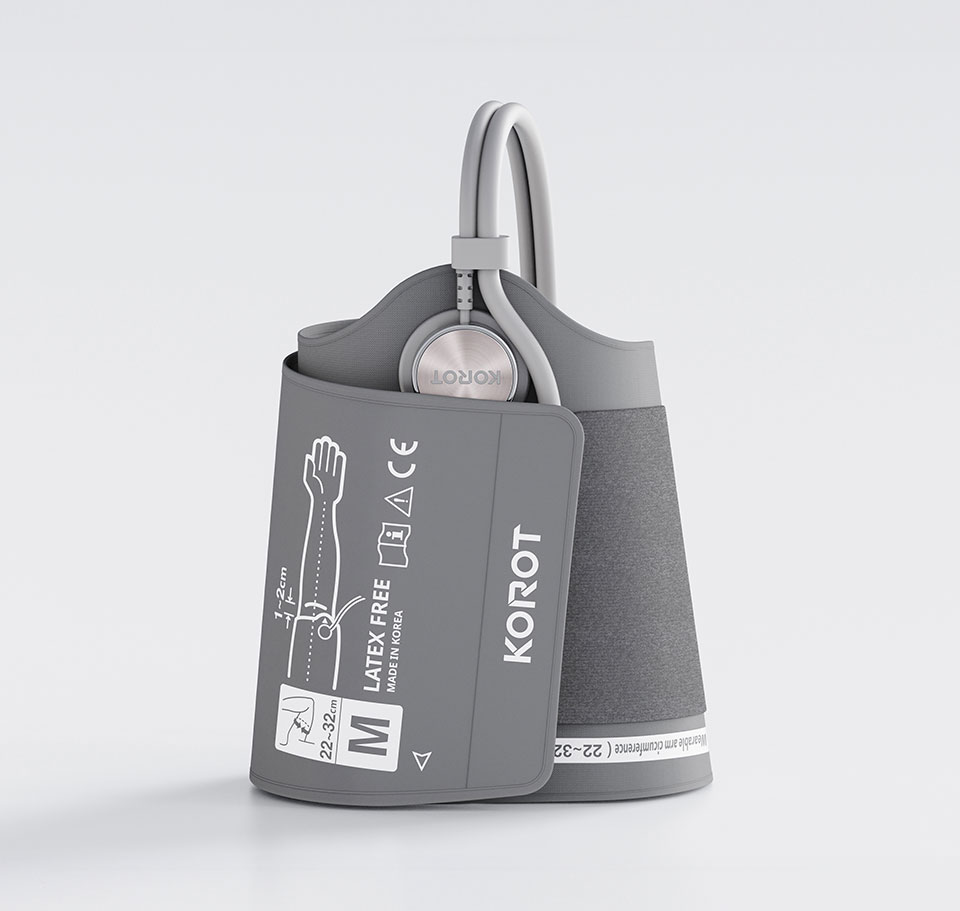

KOROT Cuff: The cuff features an embedded KOROT sensor for enhanced usability, along with a high-performance built-in microphone to effortlessly capture Korotkoff sounds

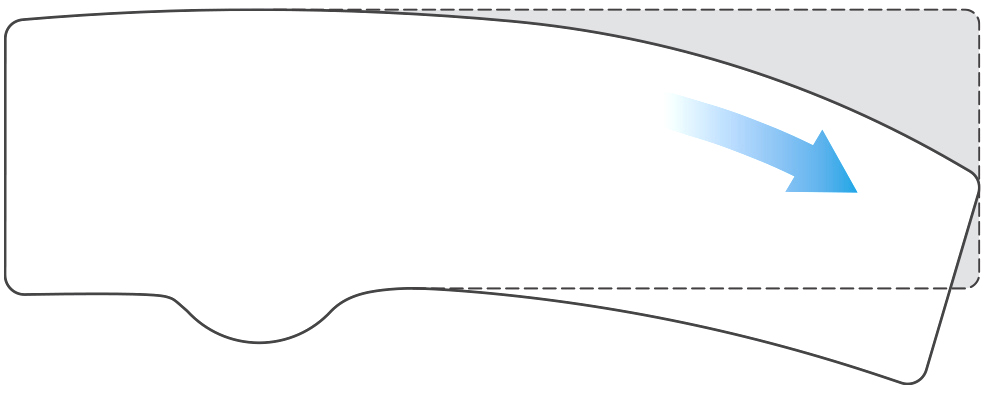

Ergonomic Design: Cuff designed to fit the shape of an arm,
enhancing the accuracy and convenience.

Adaptive Pressure Technology: The Adaptive Pressure Technology analyzes the pulse during the pressurization
so that blood pressure can be measured with necessary amount of pressure only.
It can also minimize the pain caused by pressure during measurement.

Key Features

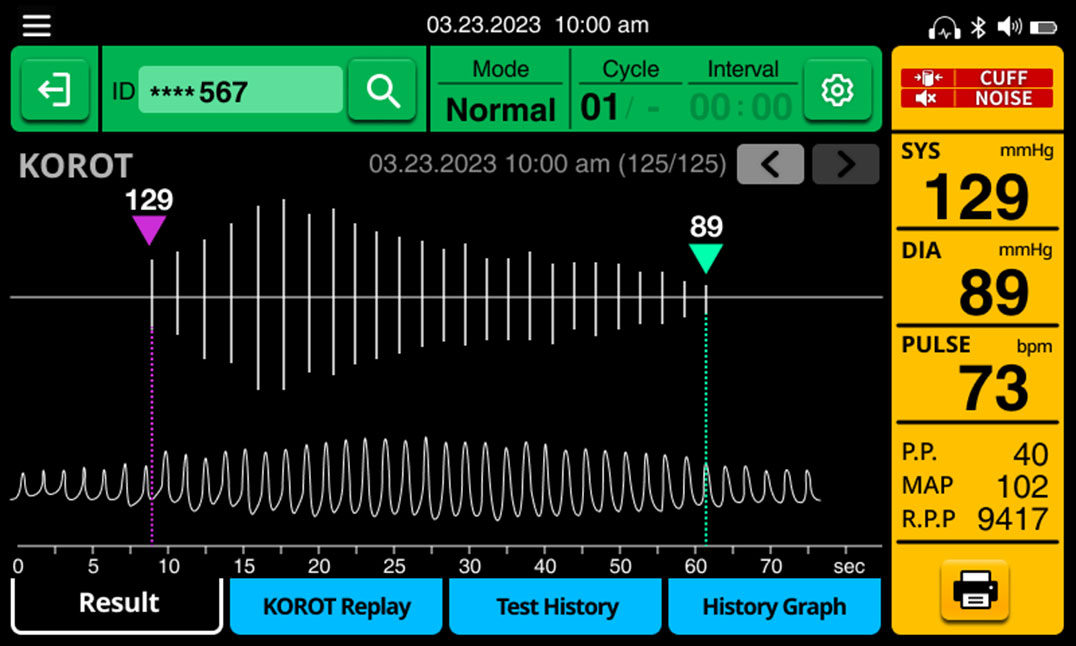

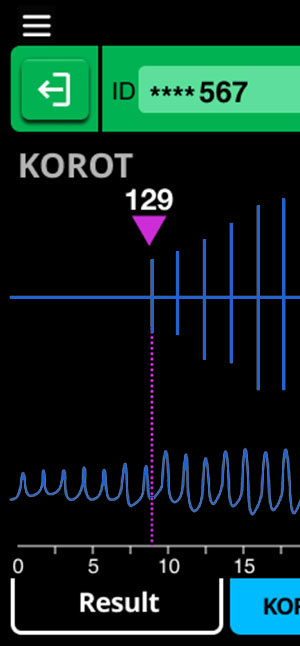

KOROT Test Replay: KOROT P3 Accurate offers a re-listening feature that allows Korotkoff sounds to be replayed, enabling precise reviews and confident reassessment of treatment decisions.

Replay graph

Replay button

Track, Manage, and Monitor with Ease: KOROT P3 Accurate allows convenient data storage and management with patient ID input.; Easily search IDs to access and monitor cumulative data and graphs for comprehensive tracking.

Export data
to USB.
Search for
data by ID
Delete
data

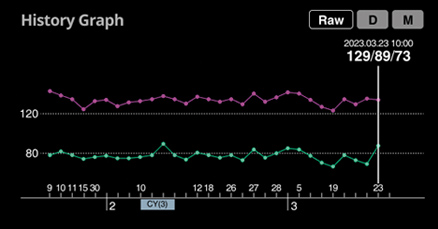

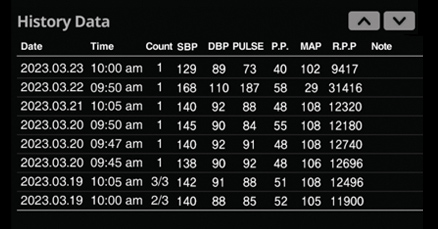

Test History / History Graph

Test
History

History
Graph

KOROT
Product Components

Available in various sizes.: Choosing the right size cuff is very important for proper blood pressure measurement.
KOROT P3 Accurate provides two sizes of cuffs.

L Size Cuff
Wearable arm circumference size	32cm ~ 42cm
Cuff bladder size	330mm ~ 160mm

M Size Cuff
Wearable arm circumference size	22cm ~ 32cm
Cuff bladder size	230mm ~ 120mm

Product
Specifications

Key
Specifications

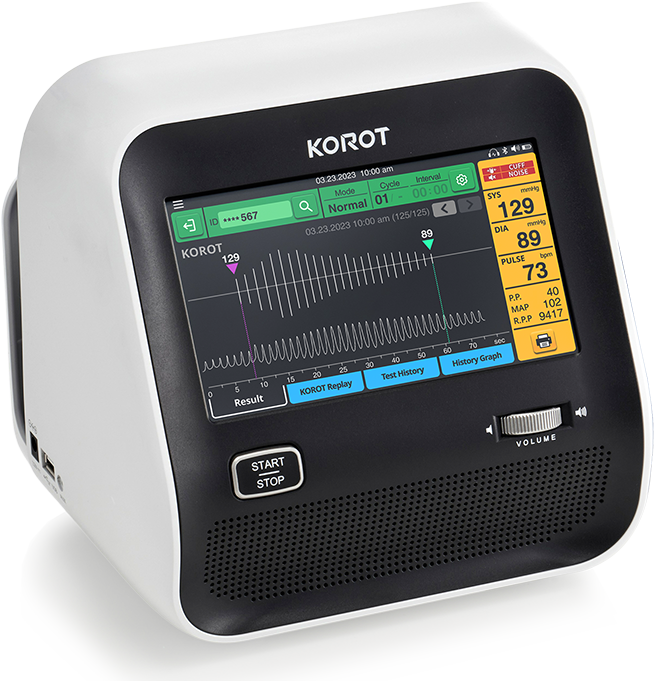

Product Name(Model Name)
Blood pressure monitor (KOROT P3 Accurate)
Degree of Precision
Pressure: ±3mmHg, Pulse: Within ±2%
Decompression system
Automatic exhaust by solenoid valve.

Measurement Method
Auto auscultation method + Oscillometric method
Minimum Scale Unit
1mmHg
Measured Values
Systolic/Diastolic blood pressure, Pulse Rate, Mean Arterial Pressure, Pulse Pressure, Rate Pressure Product

Test Range
Pressure: 0~300mmHg, Pulse: 30~240bpm
Pressurization system
Automatic pressurization by an air pump.
Cuff
M-size cuff (Only for circumference 9~13in / 22~32cm)
L-size cuff (Only for circumference 13~17in / 32~42cm)
*Not made of natural rubber latex

Feature
Specifications

Display Method
Digital touch display method (7 inch TFT LCD)

Data Storage
10000 examinations

External Interface Connector
USB A-Type

Other
Specifications

Operating Environment
0 ~ 40℃, 15 ~ 85%, 70 ~ 106kPa
Dimension
Approx: 200(W) x 180(L) x 210(H) mm
Package Weight
Approx: 4.9kg (10.8lb)

Transport/Storage Environment
-20 ~ 60℃, 10 ~ 95%, 50 ~ 106kPa
Device Weight
Approx: 2.4kg (5.3lb)
Manufacturing Country
Republic of Korea

Rated voltage and power consumption
- 100-240 V~, 1.2A, 50/60 Hz,
DC 12V, 3.4 A or
- 100-240 V~, 1.0-0.5 A,
50/60 Hz, DC 12V, 3.34 A
- Battery: 7.26V, 2550mAh
Manufacturing Company
KOROT Co., Ltd.

* To improve appearance and product performance, the above information is subject to change without prior notice.
* This product is a medical device. Please read and use precautions and instructions.
